Pearl Harbor Memorial Bridge (Q Bridge)
New Haven, Connecticut
Project Description
The new Pearl Harbor Memorial Bridge (commonly known as Q-Bridge because it crosses the mouth of the Quinnipiac River at New Haven Harbor) was part of a $2.2 Billion effort by the Connecticut Dept. of Transportation to relieve congestion and upgrade ageing infrastructure in New Haven. The bridge is part of the heavily traveled I-95 northeast corridor between New York and Boston.
The original Q-Bridge was built in the late 1950's for 40,000 vehicles per day, less than a third of the 140,000 vehicles the bridge currently sees each day. The new Q-Bridge is a signature structure for the State of Connecticut and was the first extradosed bridge constructed in the United States. Each of the two bridges have two planes of stays that fan out as the bridge changes width from one end to the other. The new cast-in-place bridges carries five lanes of traffic in each direction.
Aspire Bridge Magazine Article: Pearl Harbor Memorial Bridge (Fall 2012)
Location
I-95 over the Quinnipiac River
New Haven, CT
Owner
Connecticut Department of Transportation
Contractor
Walsh / PCL (Joint Venture)
Designer
URS
Total Contract Value
$417 million
Timeline
2009 - 2015
Construction Method
-
Cast-in-place segmental using form travelers
-
Multi-cell box girders
-
Two extradosed bridges with 32 stays in two planes at each tower for each bridge (128 total stays)
-
157m (515 ft) main span, 76m (250 ft) backspans
__________________________________________________________________
Our Role
Hatcher Technical worked with construction engineer McNary Bergeron & Johannesen to develop fully integrated construction drawings for the cast-in-place main stay towers.
Areas of the project that Hatcher Technical worked on included:
-

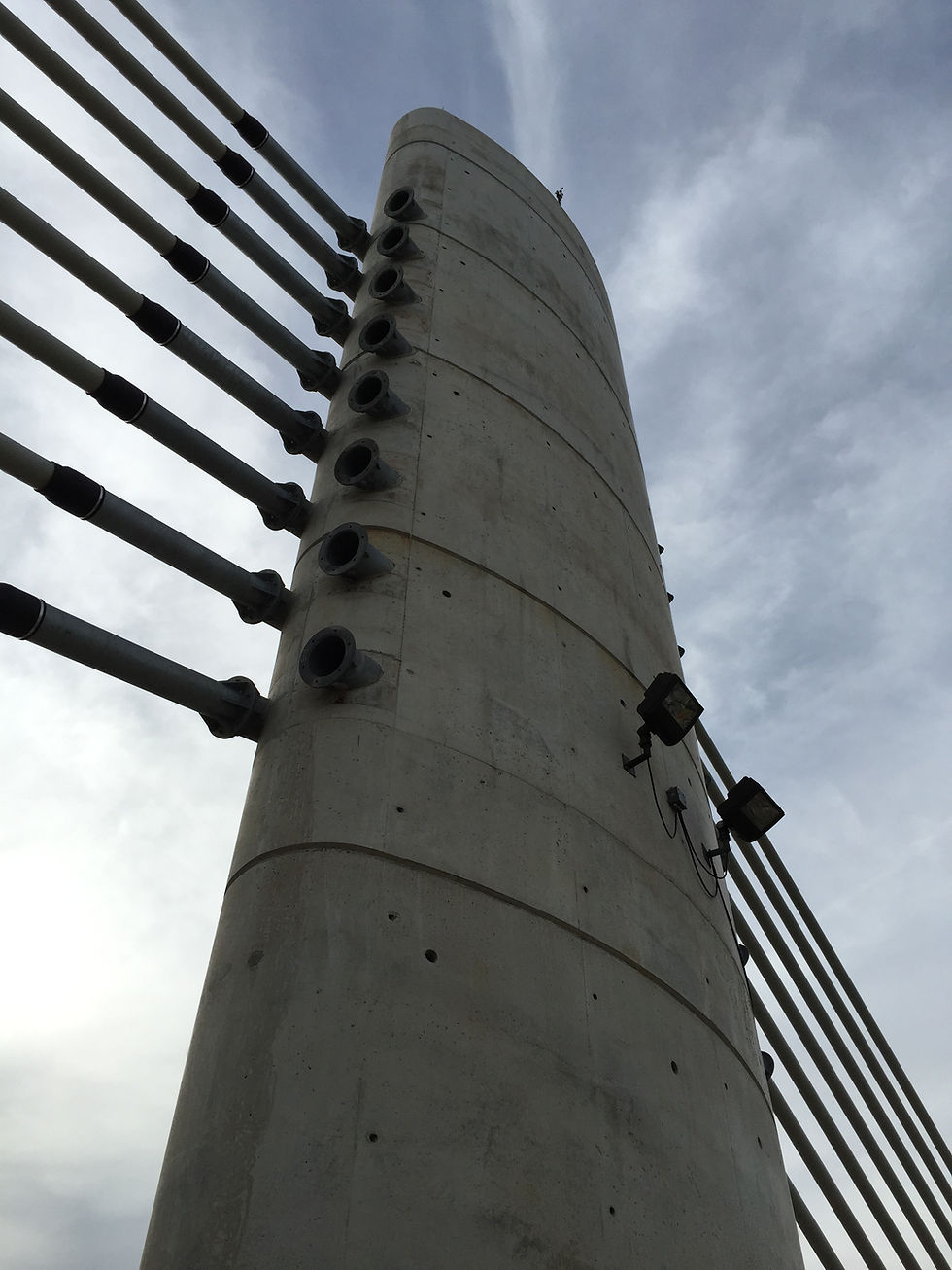

Cast-in-place main stay towers
